Pylontech Force H3X All-in-One Energy System

Key Features

All-in-One Design Eliminates Installation Complexity

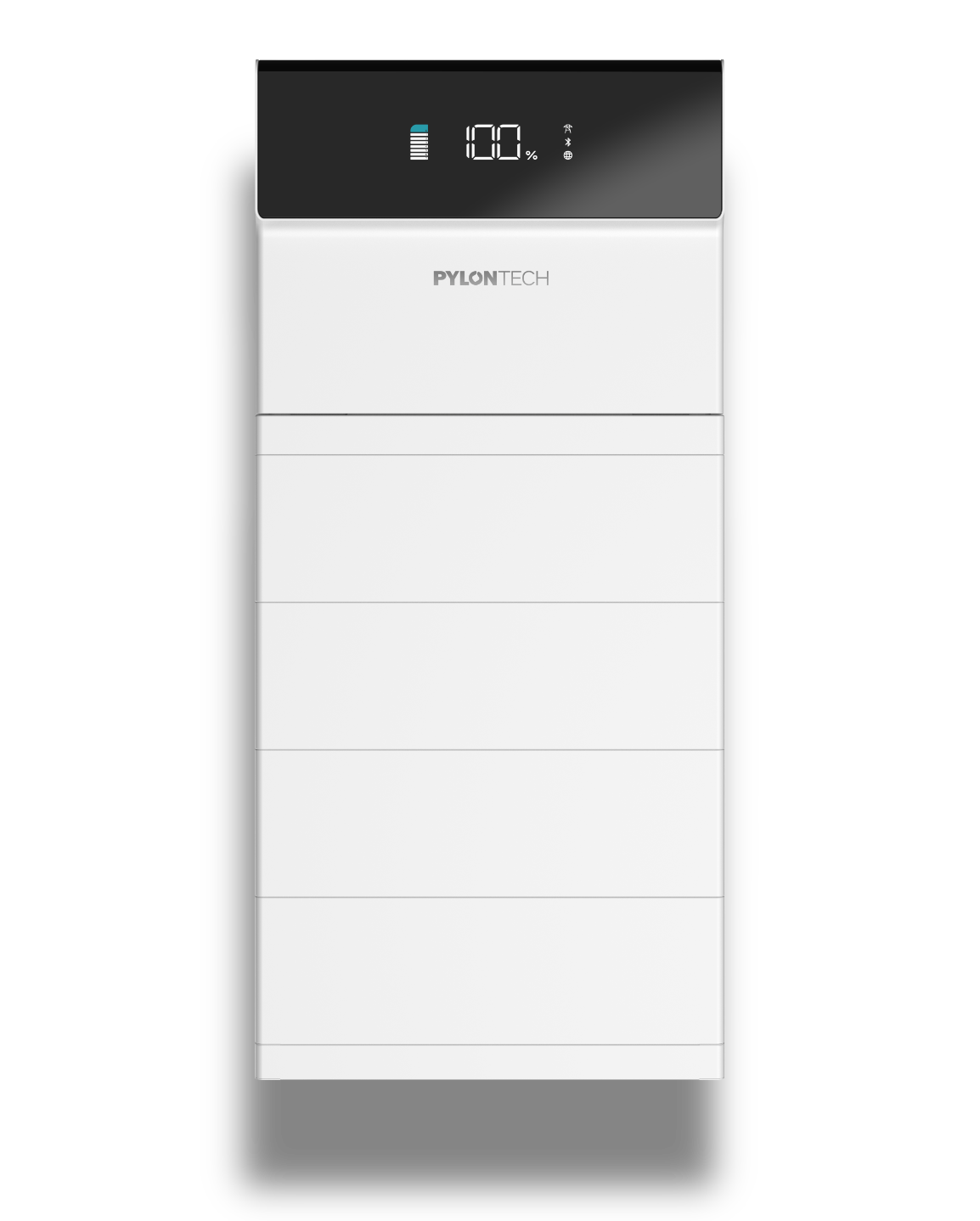

The Force H3X integrates battery, inverter, energy management system (EMS), battery management system (BMS), and uninterruptible power supply (UPS) into one floor-mounted unit. Every component is designed and manufactured by Pylontech, eliminating third-party integration risks and providing single-source warranty coverage.

‍

New Zealand Available Models

Single Phase Systems

FH3X6K-HY-1P: 6kW inverter, 5.12-20.48kWh capacity (1-4 modules)
FH3X8K-HY-1P: 8kW inverter, 5.12-20.48kWh capacity (1-4 modules)
Parallel Capability: Up to 6 systems (120kWh total)

Three Phase Systems

FH3X-10K-HY-3P: 10kW inverter, 10.24-35.84kWh capacity (2-7 modules)
FH3X-15K-HY-3P: 15kW inverter, 10.24-35.84kWh capacity (2-7 modules)
Parallel Capability: Up to 6 systems (210kWh total)
Power Extension: Software upgrade to unlock additional inverter capacity

‍

Installation and Service Advantages

Reduced Installation Time and Complexity

15-minute installation and commissioning process

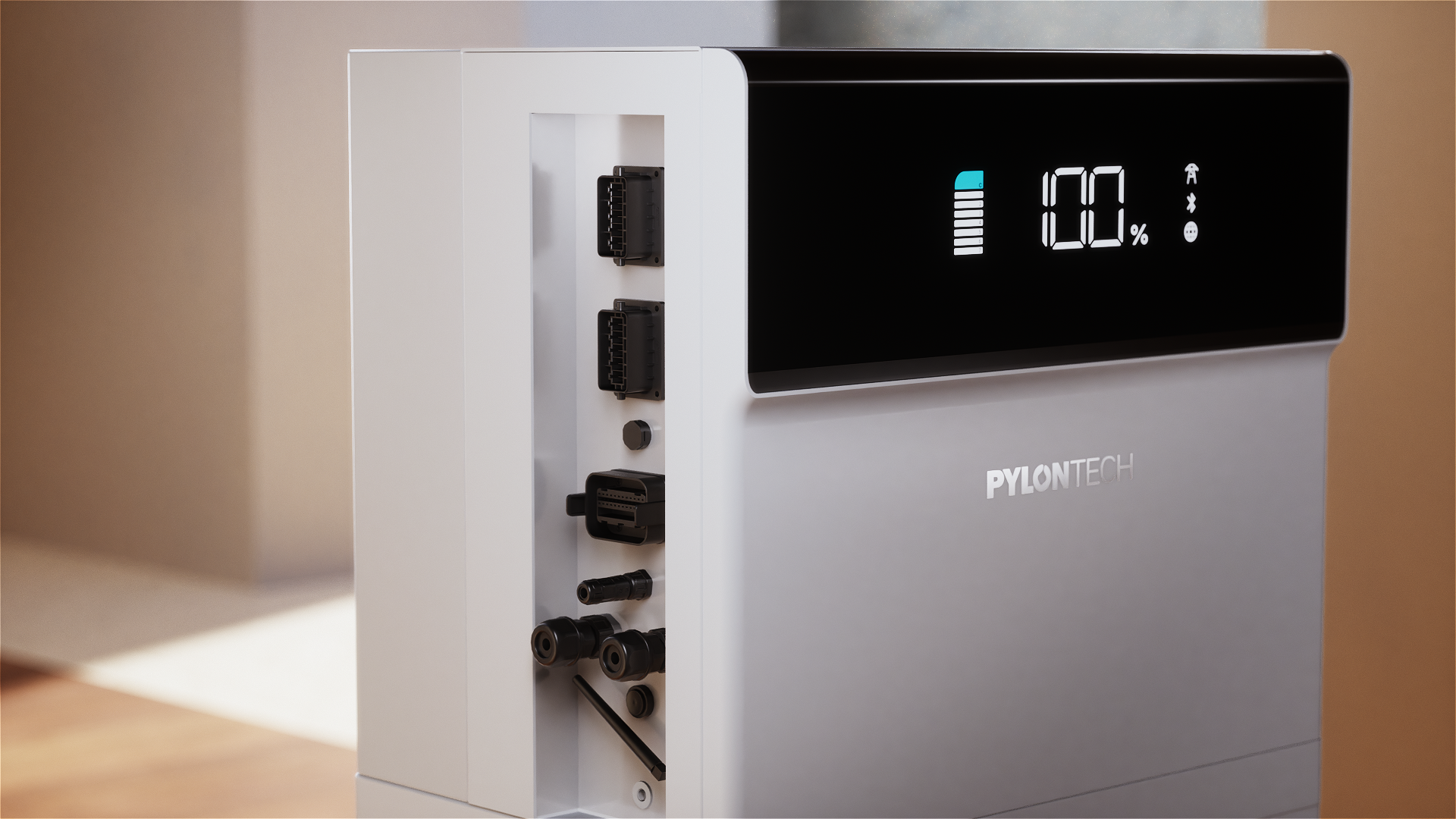

Internal stacking with no external battery cables
Auto-parallel logic eliminates DIP switches and configuration tools
Single enclosure reduces wall-mounting requirements

Lower Service Call Risk

Fanless passive cooling—no moving parts to fail
Sealed IP65 enclosure protects against dust and moisture
C5-M corrosion rating handles New Zealand's coastal conditions
8,000+ cycle life at 1C discharge rate provides 22+ years at one cycle per day

Simplified Support and Warranty

Single manufacturer for all components (battery, inverter, EMS, BMS, UPS)
One warranty covering the complete system
Local New Zealand technical support through Rise Energy
Pylontech's proven track record: 2+ million residential systems deployed globally

‍

‍

Technical Performance

Power and Efficiency

Maximum efficiency: 98%
European efficiency: 97.5%
100% three-phase load unbalance supported
Grid switchover time: <10ms for seamless backup

Environmental Durability

Operating temperature: -10°C to 55°C
Humidity range: 0-100% relative humidity
Altitude capability: Up to 4,000m
Noise level: <29dB (fanless operation)
IP65 ingress protection with C5-M corrosion resistance

Smart Energy Management

Dynamic Control: Automatically learns household energy patterns and optimises charging/discharging
Intelligent Dynamic Mode: Uses live pricing data and weather forecasts for maximum savings (API release tbc - expected 2026)
Remote Monitoring: WiFi/Bluetooth connectivity with mobile app access

‍

Scalability Features

Battery Expansion

Add modules within each system up to maximum capacity

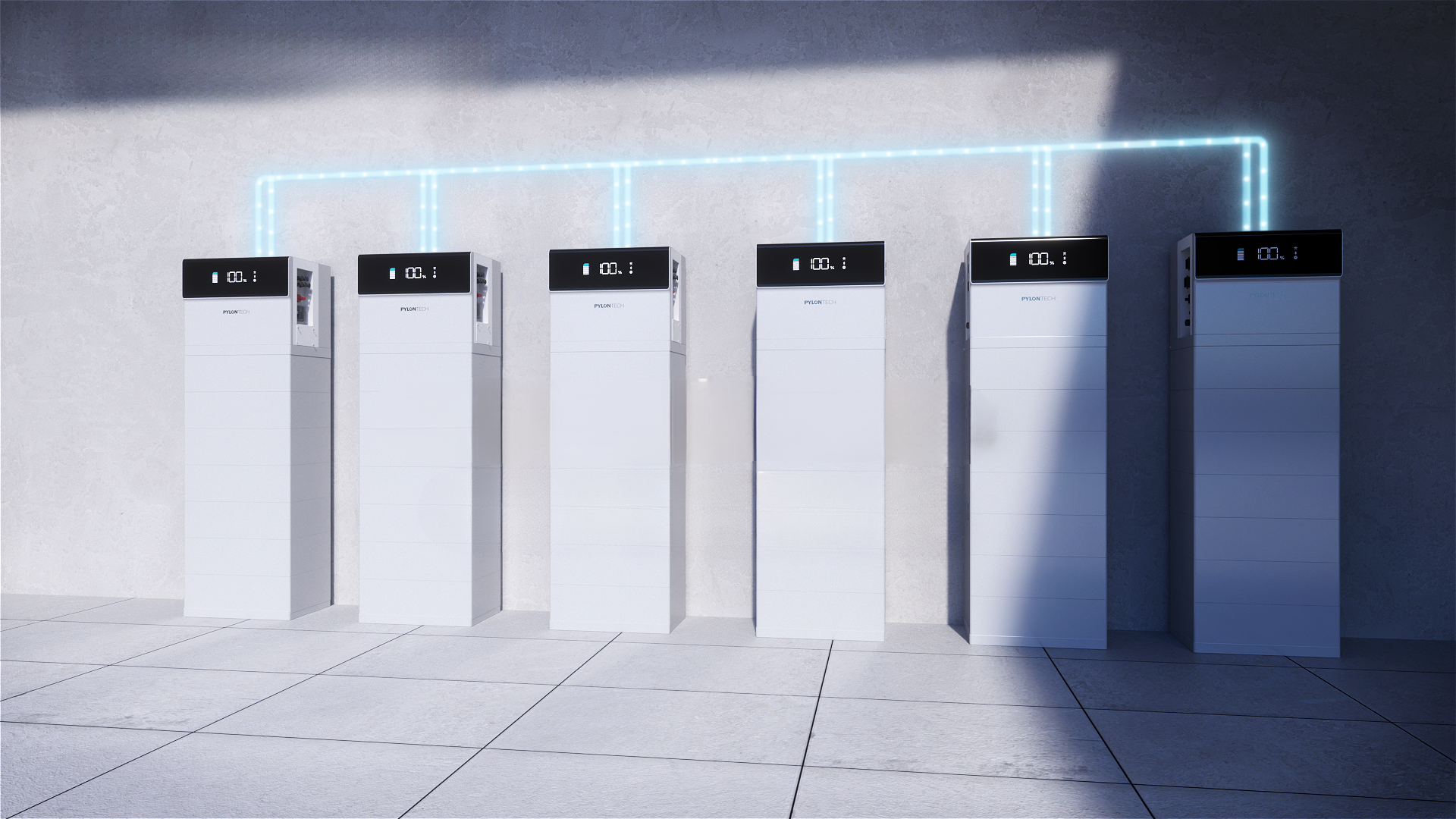

Parallel up to 6 complete systems for large installations
No hardware changes required for capacity expansion

Power Extension (Three-Phase Only)

Software-based inverter output upgrades
Unlock additional capacity without hardware replacement
Certified upgrades maintain warranty coverage

‍

Detailed Specifications

System Architecture

Integration Level: Complete system (battery + inverter + EMS + BMS + UPS)
Manufacturer: Pylontech (single-source design and manufacturing)
Design Life: 15+ years with 8,000+ cycles at 1C
Battery Chemistry: LiFePO4 (Lithium Iron Phosphate)

‍

New Zealand Model Specifications

Single Phase Models

FH3X6K-HY-1P

Inverter Output: 6kW continuous
Battery Options: 5.12kWh / 10.24kWh / 15.36kWh / 20.48kWh (1-4 modules)
Dimensions: 540×665/835/1005/1175×350mm (W×H×D)
Weight: 77/116/155/194kg (1-4 modules)

FH3X8K-HY-1P

Inverter Output: 8kW continuous
Battery Options: 5.12kWh / 10.24kWh / 15.36kWh / 20.48kWh (1-4 modules)
Dimensions: 540×665/835/1005/1175×350mm (W×H×D)
Weight: 77/116/155/194kg (1-4 modules)

‍

Three Phase Models

FH3X-10K-HY-3P

Inverter Output: 10kW continuous
Battery Options: 10.24kWh / 15.36kWh / 20.48kWh / 25.6kWh / 30.72kWh / 35.84kWh (2-7 modules)
Dimensions: 540×705/875/1045/1215/1385/1555×350mm (W×H×D)
Weight: 86/125/164/203/242/281kg (2-7 modules)

FH3X-15K-HY-3P

Inverter Output: 15kW continuous
Battery Options: 10.24kWh / 15.36kWh / 20.48kWh / 25.6kWh / 30.72kWh / 35.84kWh (2-7 modules)
Dimensions: 540×705/875/1045/1215/1385/1555×350mm (W×H×D)
Weight: 86/125/164/203/242/281kg (2-7 modules)

‍

Electrical Specifications

AC Parameters (Grid Side)

Single Phase: 1/N/PE a.c. 230V, 50/60Hz
Three Phase: 3/N/PE a.c. 400V, 50/60Hz
Power Factor Range: -0.8 to +0.8
Total Harmonic Distortion (THDi): <3%

DC Parameters (PV Side)

Maximum Input Voltage: 600V (Single Phase) / 1000V (Three Phase)
MPPT Voltage Range: 80-550V (Single Phase) / 200-850V (Three Phase)
MPPT Trackers: Up to 2 (Single Phase) / Up to 3 (Three Phase)
Maximum Current per MPPT: 16A (Single Phase) / 20A (Three Phase)

DC Parameters (Battery Side)

Maximum Continuous Charge/Discharge: 40A (Single Phase) / 50A (Three Phase)
Battery Module: FH10050 (5.12kWh per module)
Operating Voltage Range: Varies by module configuration

‍

‍

Environmental and Safety

Operating Conditions

Temperature Range: -10°C to 55°C*
Humidity: 0-100% relative humidity
Altitude: Up to 4,000m*
Noise Level: <29dB (passive cooling)

Protection and Safety

Ingress Protection: IP65 (dust-tight, water-resistant)
Corrosion Protection: C5-M rated for marine environments
Emergency Power Off: Built-in EPO switch
Arc Fault Protection: AFCI 2.0@IEC63027 compliant

Grid Compliance

AS 4777.2 (Australian/New Zealand grid connection)
IEC62619:2022 (Battery safety)
UL9540A (Fire safety testing)
Multiple regional standards for global compatibility

‍

Communication and Monitoring

Connectivity: WiFi, WLAN, Bluetooth
Display: LED status indicators
Remote Access: Mobile app and web portal
API Integration: Available September 2025

Shipping Information

Single Phase Models

FH3X6K-HY-1P / FH3X8K-HY-1P

Unit Dimensions: 540×665/835/1005/1175×350mm (W×H×D)
Unit Weight: 77/116/155/194kg (1-4 modules)
Packaged Dimensions: Contact Rise Energy for details
Packaged Weight: Contact Rise Energy for details

‍

Three Phase Models

FH3X-10K-HY-3P / FH3X-15K-HY-3P

Unit Dimensions: 540×705/875/1045/1215/1385/1555×350mm (W×H×D)
Unit Weight: 86/125/164/203/242/281kg (2-7 modules)
Packaged Dimensions: Contact Rise Energy for details
Packaged Weight: Contact Rise Energy for details

Warranty Information

System Warranty: 10 years (covers complete integrated system)

‍

Please refer to the warranty document from the manufacturer for complete terms and conditions.

‍
